IPG LightWELD 1500-XC Handheld Laser Welding and Cleaning System, 10M cable
With Integrated Laser Welding and Cleaning Unit.
Features:
Laser Generator 1500 W Average, 2500 W Peak air cooled, IPG Ytterbium Fiber Laser 4X Faster than TIG.
• High Frequency Pulsed mode
• 50 micron diameter fiber with 10 m (≈ 33 ft) fiber delivery to the head
• Power adjustable from 10% to 100% of maximum output power
• Class-2M guide laser capable of producing a peak power of 1mW. Eye or skin exposure
should be avoided. Do not stare directly into beam or view with optical instruments.
Industrial grade controller housed within the base unit
• Provides control of all system functionality, laser parameters, gas flow, and monitoring of
safety interlock circuits.
• Interface via front panel controls and Ethernet port web-page GUI with programs selection
Front Panel Controls
• Rotary knob controls and displays for Laser Power, Wobble Length and Wobble Frequency
• Touch button access to Stored Process Modes for welding and cleaning
• System status indicators
• System enable key-switch.
• Emergency Off (EMO) button

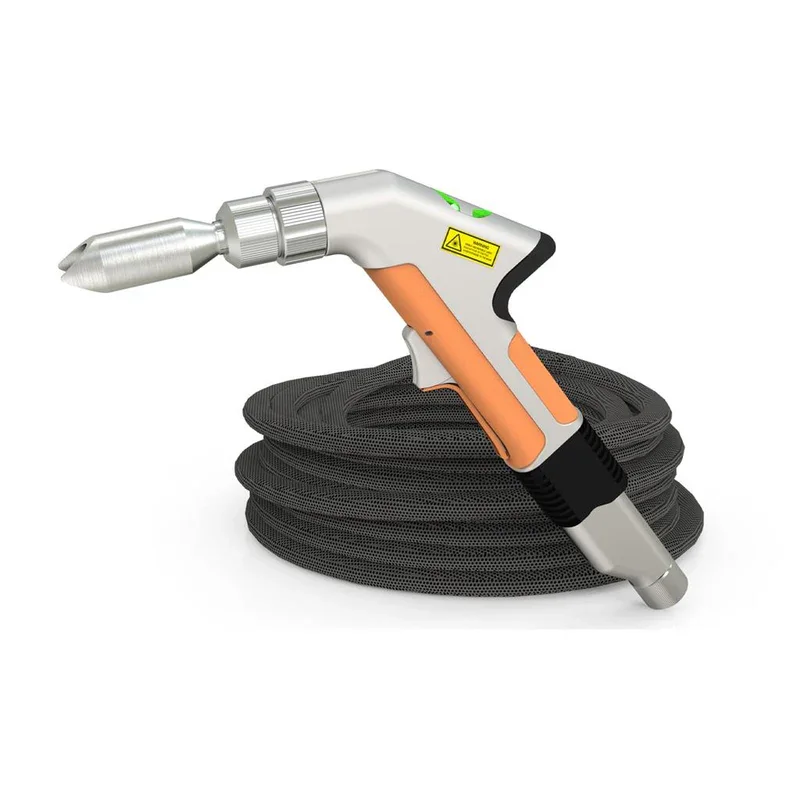

Handheld Laser Welding and Cleaning Head
• Optical configuration to deliver on-target beam diameter of 150 um (0.006 ins)
• Focal Length 120 mm
• On-axis red guide beam
• Wobble function: Linear beam scanning. Length 0-15 mm, Frequency 0-300 Hz
• 2-Position trigger control
• Integrated welding part touch safety sensor
• Integrated process gas delivery (Flow controlled by Base Unit)
• Four interchangeable precision welding nozzles for different joint configurations:
6 mm, Two points tip
9 mm, Two points tip
One point tip
Circle tip
Two interchangeable precision cleaning nozzles for different joint configurations:
Configurable Single Prong Cleaning Nozzle
Rear Panel Connections
AC Power: 220V, 1 Ph, 50/60 Hz, 24 Amp.
Power CONNECTOR, 30A 2P3W IP44 6H included.
Customer to supply power cable.
Welding Head I/O.
Work-piece Clamp Circuit.
Process gas input 1⁄2 inch.
LightWELD Startup Kit is included with each LightWELD unit. Includes safety glasses, welding
helmet, nozzle kit, windows (5 piece), connector, user manual, plus additional ancillaries.
Finance With 90 Day Skip
