IPG LightWELD 2000 XR — Compact, High-Power Laser Welding System
The IPG LightWELD 2000 XR is a compact, high-performance fiber-coupled welding head designed for demanding production environments. It delivers up to 2 kW of laser power at the fiber output, optimized for precise, repeatable welding of metals including stainless steel, carbon steel, aluminum, copper, and high-strength alloys. The LightWELD 2000 XR combines robust industrial construction with optics and cooling engineered for continuous operation and low maintenance.
Key features
Power and beam quality: Up to 2000 W delivered through a graded-index or multimode fiber with high coupling efficiency, providing deep penetration and narrow weld seams where required.
Compact, rugged head: Small form factor and hardened housing for easy integration into robotic cells, automated stations, or manual fixtures. Designed for shop-floor conditions.
Flexible focusing optics: Interchangeable focusing lenses and adjustable focus position for spot, seam, and fillet weld geometries. Options for different focal lengths to suit thin-sheet to thicker-section welding.
Integrated sensor options: Built-in coaxial or off-axis vision/sensing packages available for seam tracking, melt pool monitoring, and process feedback to improve first-pass yield.
Standoff and protection: Front-end protective window and shroud options for protection against spatter and debris; quick-change window holders for minimal downtime.
Cooling and thermal management: Efficient water-cooling interface with low pressure-drop design; thermal stabilization for consistent beam properties during long production runs.
Fiber compatibility and connectivity: Accepts standard high-power delivery fibers (specified core sizes) with secure fiber-coupling interface for reliable transmission and easy replacement.
Control and integration: Compatible with common laser source controllers and robot I/O; supports modulation and pulse programming for customized weld profiles.
Safety and standards: Built to meet industrial laser safety and EMC requirements for integration into factory systems.
Provide the text to shorten.
Benefits
High productivity: 2 kW power enables faster welding speeds and deeper penetration vs. lower-power heads.
Consistent quality: Stable optics and thermal control reduce variation between cycles.
Low footprint: Compact head simplifies cell design and allows closer access to confined joints.
Reduced maintenance: Robust protective features and quick-change elements lower downtime.
Versatile: Wide range of optics, sensors, and control options make the head adaptable to varied production needs.
Available options and accessories
Selection of focusing lenses and collimators
Coaxial and off-axis vision stations for seam finding and process monitoring
Protective gas nozzles and spatter shields
Fiber assemblies in multiple core sizes and lengths
Mounting adapters and robot flanges
Cooling modules and temperature monitors
Calibration and service kits
For application-specific recommendations (optimal fiber size, lens choice, sensing package, and settings for material/thickness), provide material type and thickness, joint geometry, and production rate targets to select the best configuration and welding parameters.

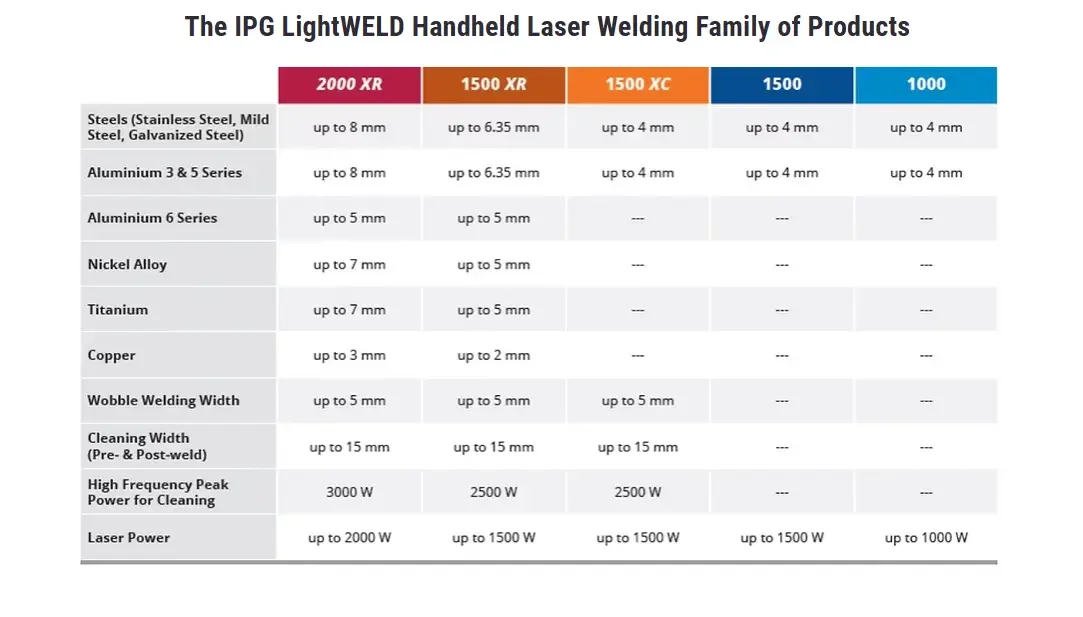

Steel (Stainless Steel, Mild Steel, Galvanized Steel): up to 8 mm
Aluminum 3 & 5 Series: up to 8 mm
Nickel Alloy: up to 7 mm
Titanium: up to 7 mm
Copper: up to 3 mm
Wobble Welding Width: up to 5 mm
Cleaning Width: up to 15 mm
Laser Power: up to 2000 W
IPG Lightweld 1500 XR Handheld Laser Welder and Cleaning System is designed to revolutionize your weld quality and productivity. LightWELD laser welding is fast, easy to learn, and produces high quality, consistent results across a wide range of materials and thicknesses. Pre-weld and post-weld laser cleaning functionality optimizes weld quality while increasing productivity.
Material Types:
Stainless Steel
Galvanized Steel
Mild Steel
Aluminum (3 & 5 Series)
Aluminum (6 Series)
Nickel Alloys
Titanium
Copper
Easily change laser focus positions for advanced control over welding results

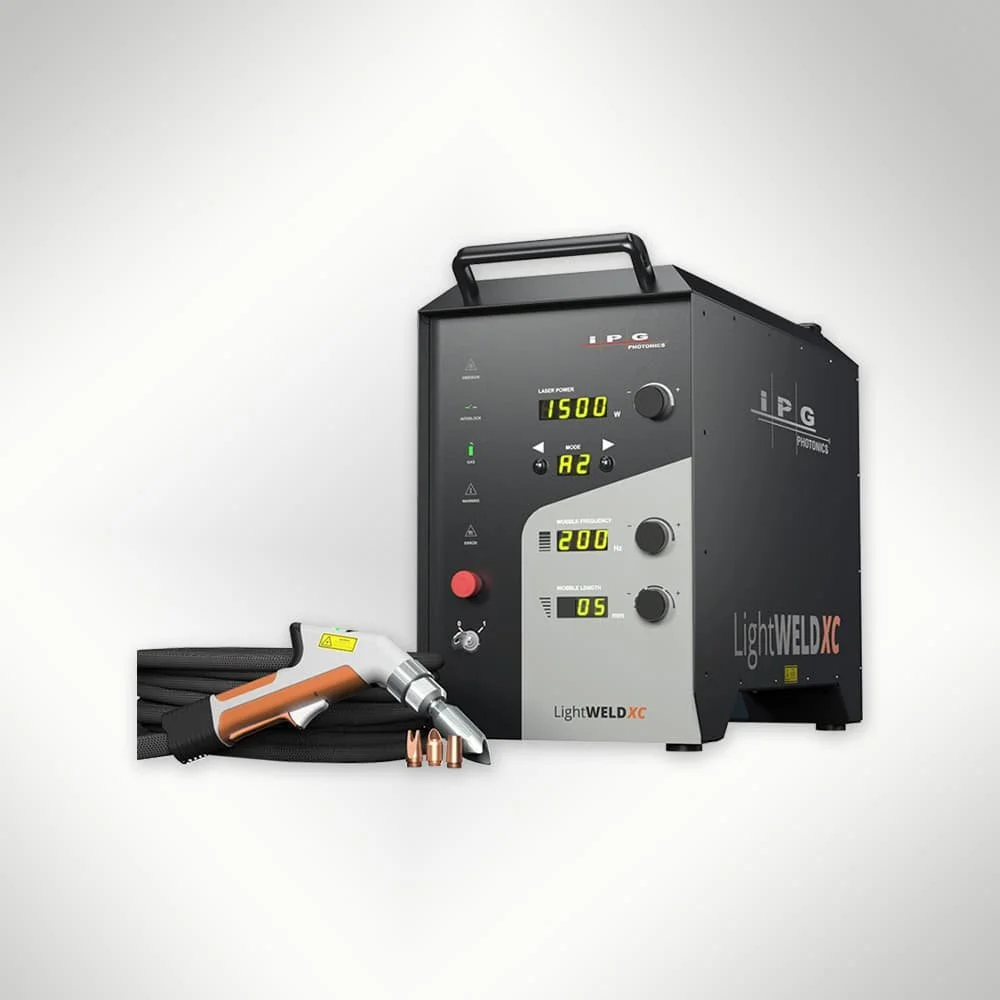

LightWELD Handheld Laser Welder XC 1500
Features:
Adjustable width and speed for excellent seam control and parts with imperfect fit up
Continuous wave and pulsed laser welding modes for improved weld quality and reduced heat input
100 customizable welding and cleaning parameters sets with 75 built-in presets optimized for common materials and thicknesses
Weld autogenously or with single and dual MIG wire feed to control weld size, fill gaps, or laser braze with a variety of wire materials
Adjustable focal position for precise control over power density and spot size
Line mode for perfectly sized tack and stitch welds
Compatibility with all common welding shielding gases, including nitrogen (steels and copper) and argon (aluminum and titanium)
Easily change laser focus positions for advanced control over welding results

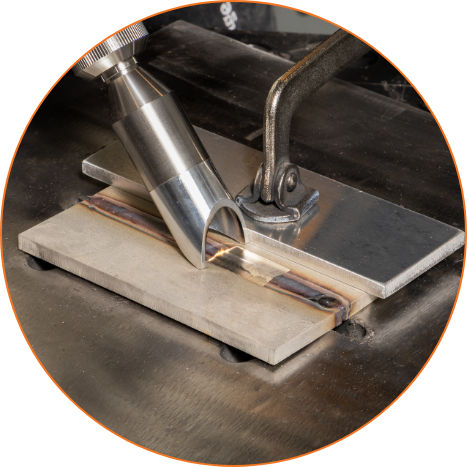

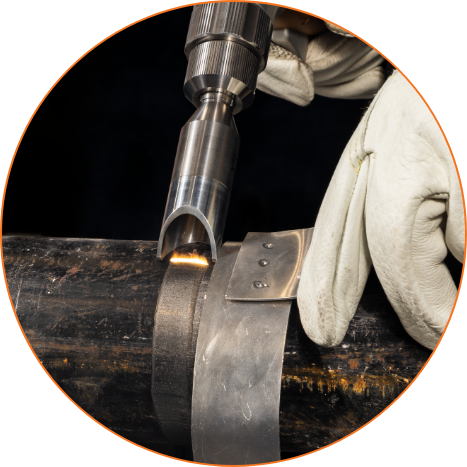

Cleaning: The power of a focused laser beam enables handheld laser welders to weld even through contaminated surfaces. For when nothing less than perfection is acceptable, LightWELD offers pre-weld and post-weld laser cleaning functionality.

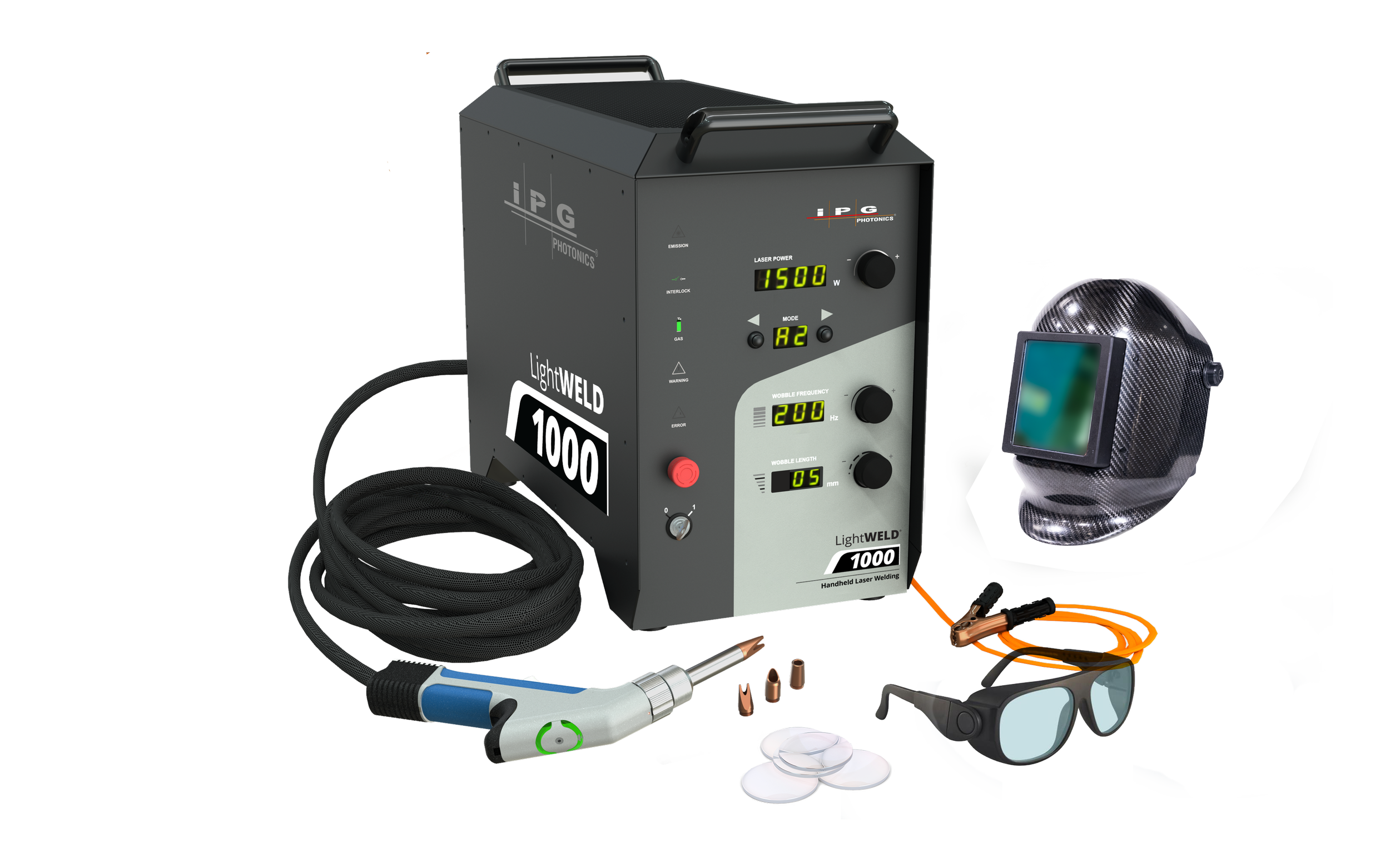

IPG LightWELD 1000 Handheld Laser Welder
With Integrated Laser Welding and Cleaning Unit
Made in the USA
With the LightWELD 1000 you can take advantage of a turnkey, state-of-the-art handheld laser welding system that offers unmatched capabilities and industry-leading safety standards.
With a complete assortment of products, accessories and services to implement LightWELD handheld laser welding in your operations.
IPG LightWELD 1000 is ideal for thin sheet metal welding, achieving welding depths of up to 4 mm with 100% duty cycle at 100% rated power.
With the LightWELD 1000 you can take advantage of a turnkey, state-of-the-art handheld laser welding system that offers unmatched capabilities and industry-leading safety standards. With a complete assortment of products, accessories and services to implement LightWELD handheld laser welding in your operations.
EASY to LEARN LASER WELDING
